Product name : Medical Ultra Pulse Co2 Laser
Product No. : YR212

Online Inquiry         Email Us

  Details:


Medical Ultra Pulse Co2 Laser

  • Laser wavelength10.6um
  • Laser output modeSingle,Continuous, Repeat, Super pulse
  • Beam ModeLow modules
  • Laser spot diameter≤0.5mm
  • Wiring voltage12-15kv
  • Rated current20mA

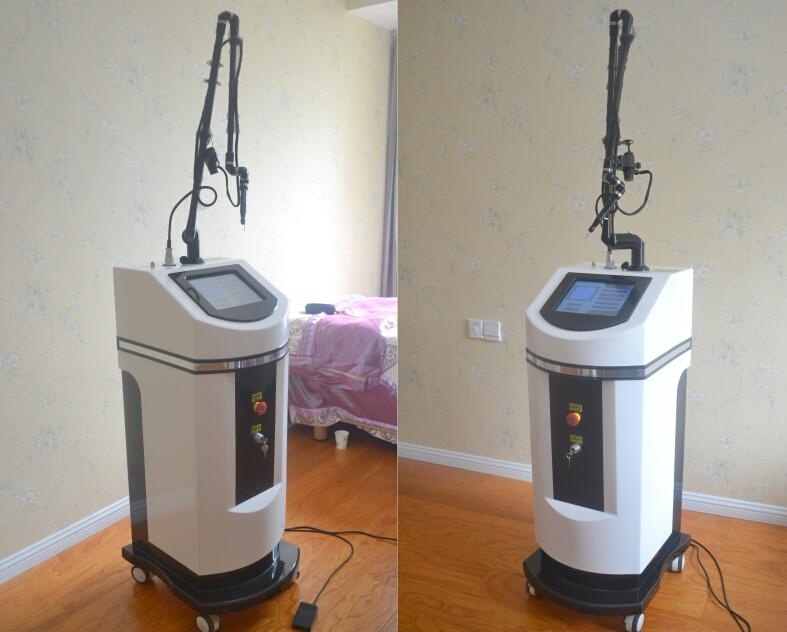

■ Detailed Pictures

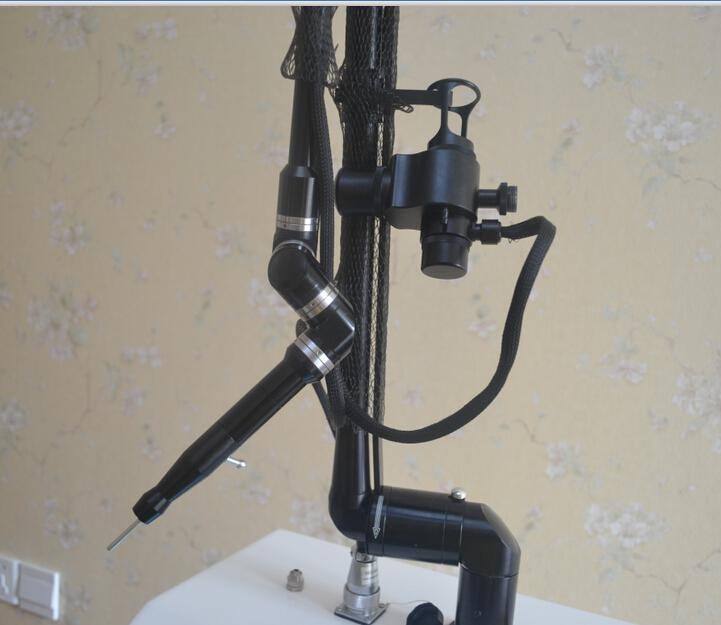

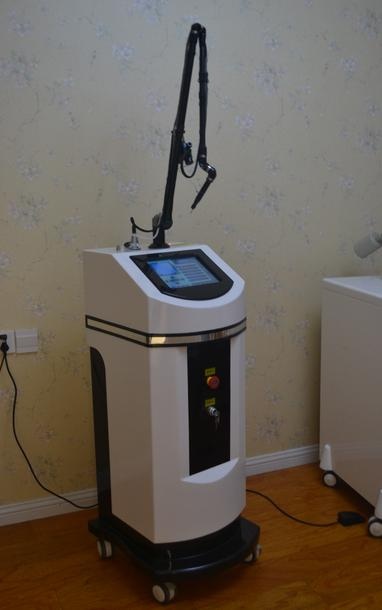

Detailed Parts:

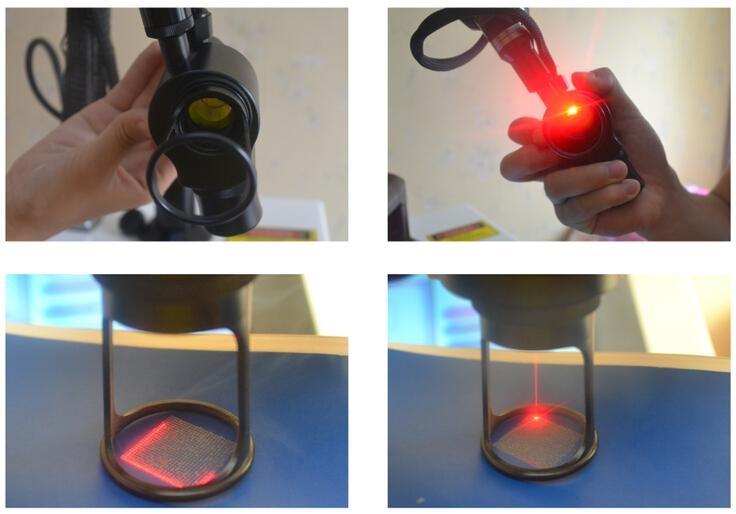

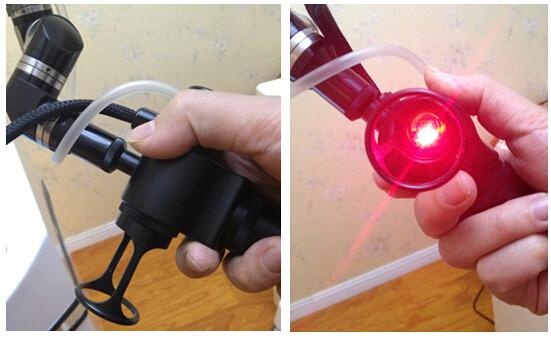

Treatment Heads:

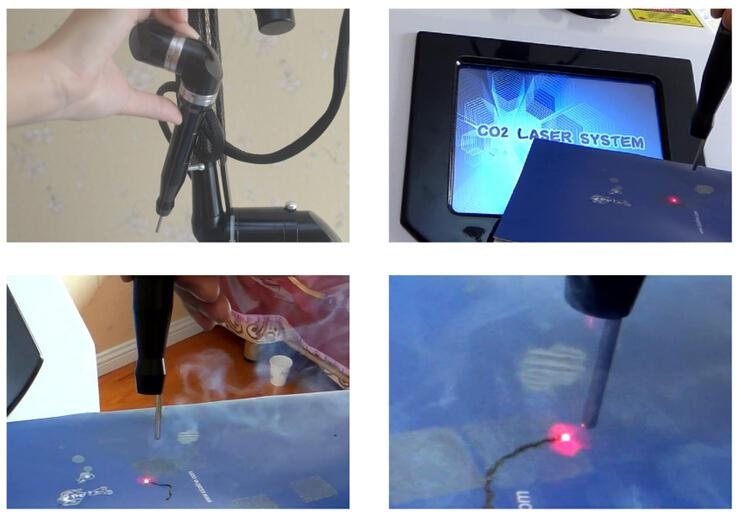

Fractional Co2 Mode (Scanning):



Pulsed Mode (Cutting):

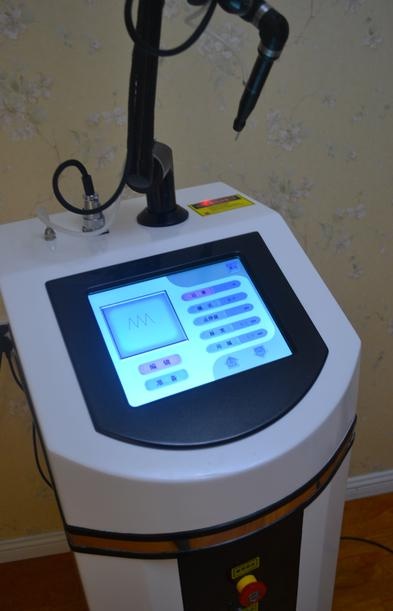

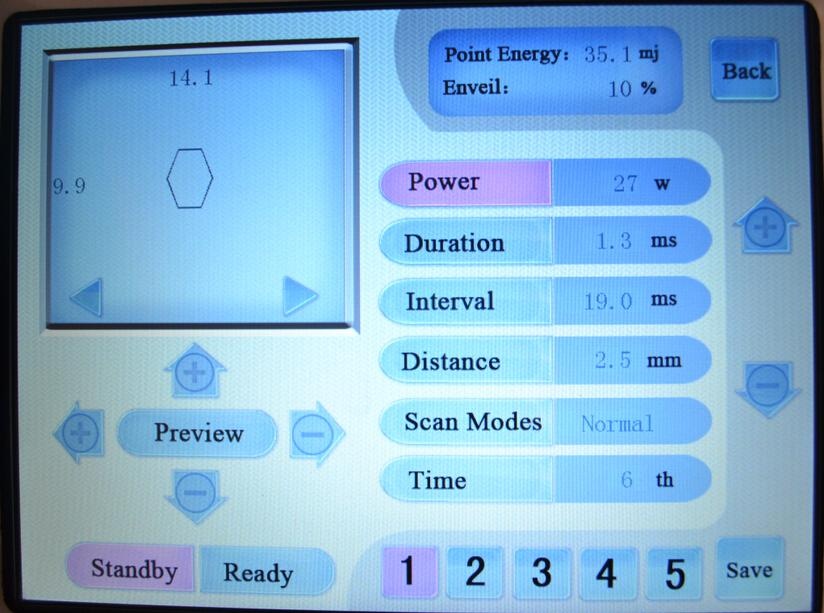

Operation interface :

■ Technical Data
Laser apparatus Sealed off laser device stimulated by direct current
Laser wavelength 10.6um
Laser output mode: Single,Continuous, Repeat, Super pulse
Beam Mode Low modules
Laser spot diameter ≤0.5mm
Modes Fractional mode (Scanning)
Ultra Pulsed mode (Cutting)
Wiring voltage 12-15kv
Rated current 20mA
Laser transmission system 7 joint arm
Operation control Foot switch control
Power 1-30w
Laser energy 1-250mj
Input power AC220v±10%
Handpiece tip: two kinds of focus lens for f=100mm, and f=50mm
Operation Interface 10.4 inch TFT LCD Touch screen
Aiming beam: Red semi-conductor Laser Wavelength: 650~670nm
Cooling system: Water cooling+air cooling system
Scan patterns More than 7 kinds
Scan pattern size 0.1mmx0.1mm ~ 20mmx20mm
Pulse duration 0.1-10ms
Spot distance 0.1-2.6mm
Power supply AC220V±10%,50HZ
Maximum output power less than 600W

■ Specifications
Treatment Principle:
Mejire Co2 instrument uses the most advanced micro-lens technology, which allows the laser system to generate a large number of tiny pulse beam. It can be formed of a 0.12mm to 0.25mm, and a depth of 2 mm minimally invasive region in the skin. when these beams works on the skin tissue, It will form a large number of small Minimally invasive zone and heat accumulation area or Microthermal Zone. Then the epidermal pigment tissue will be partition and gasification. In addition, the accumulation of heat in the dermis will make the skin collagen immediate contraction and promote the skin collagen regeneration. So as to reach achieve the effect of wrinkle removal, scar removal, skin rejuvenation, pigmentation abnormalities and other skin problems healing and improved
How CO2 laser is different?
Before fractional laser, many patients endured long, often painful laser resurfacing procedures with lengthy recoveries in order to achieve skin rejuvenation. Historically, many procedures involved vaporising an entire layer and surface of skin, resulting in significant downtime, discomfort and prolonged redness. In addition, old CO2 lasers could not treat non-facial areas like the neck and other area easily because skin in these areas did not heal as well as the face.


Application:
1. Main function: scar removal (2 kinds of treatment modes: Fractional mode for scanning; Pulsed mode for cutting). All kinds of excavated type of scars, Like traumatic scars, surgical scars, hypertrophic scar and smallpox scar,etc.
2. Remove wrinkles around eyes, such as crow's feet, etc. Remove wrinkles on the forehead and around mouth.
3. Removal Nevus,Warts ,and Small tumor of the skin resection.
4. Skin rejuvenation and skin lifting, Laser skin resurfacing.
5. Surgery operation, Dermatology: cauterize, incise, solidify and radiate for tissue of human body.
6. Remove stretch marks and other kinds pitting scar,acne scars.
7. Remove melasma, freckles, age spots,etc.

Advantage of Mejire Co2 laser system:
1. Super 10.4inch luxurious LCD touch screen, human-computer interface more convenient operation and more accurate treatment.
2. More than 7 kinds of scan patterns (ellipse scan, square scan, rectangle scan, triangle scan ,Polygon scan and so on) for more convenient operating with less cost.
3. Flexibility switch between 2 modes: ultra Pulsed mode(for cutting) and Fractional Mode(scanning). More wider clinical application range.
4. 7 joint arm for more flexible and simple operation. Convenient for various treatment angles and areas.
5. The Focus spots diameters and intervals can be adjusted freely, Will do more accurate treatment.
6. 10W, 20W, 30W Power supply, free choice according to different clinical needs.
7. The single pulse energy can be up to 800MJ to eliminate the deeply endogenous pigmentation thoroughly and easily.
8. Using the super cooling system with stable performance to ensure and meet the continuously long time work of machine.
