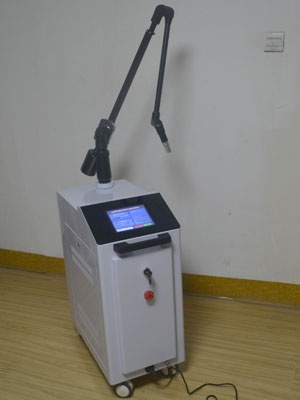

Q-Switched Nd: Yag Laser Machine for Tattoo removal

• Pulse width 10±3ns

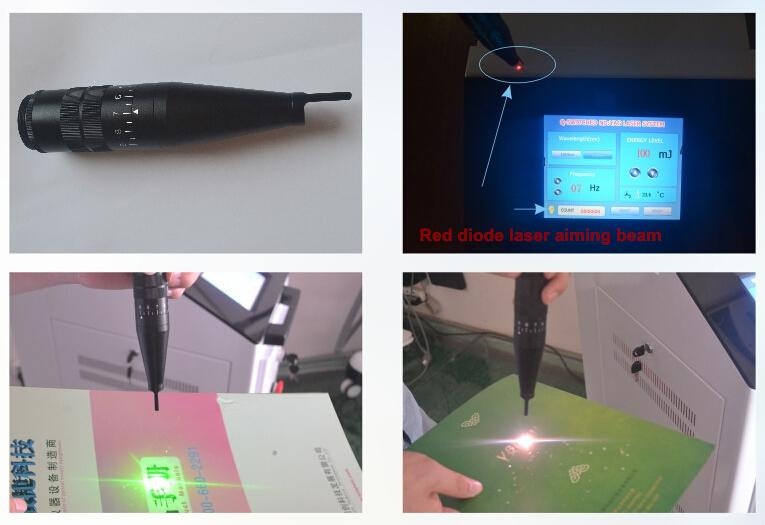

• Indicator Red Diode laser aiming beam
• Spot size 0 - 9 mm diameter adjustable
• Treatment Head 2 heads for change
• Output Power 1500W

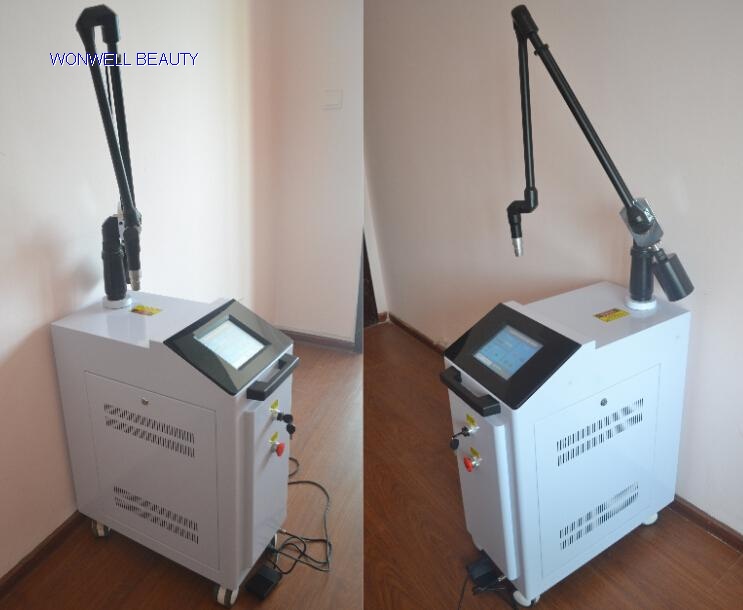

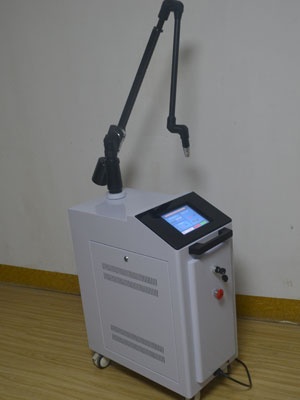

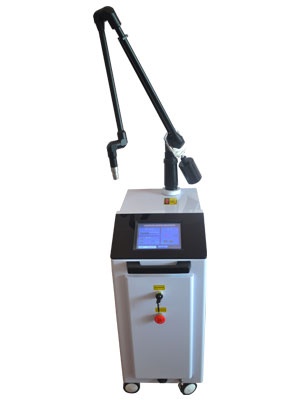

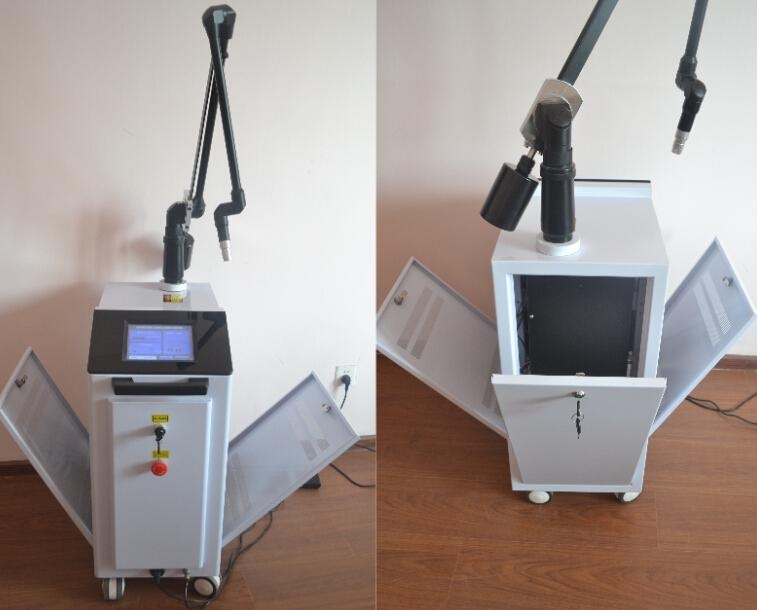

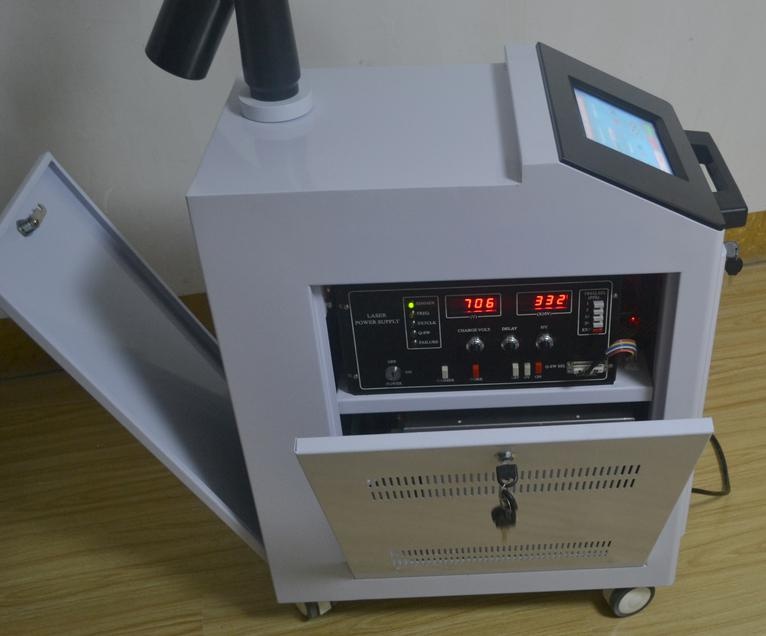

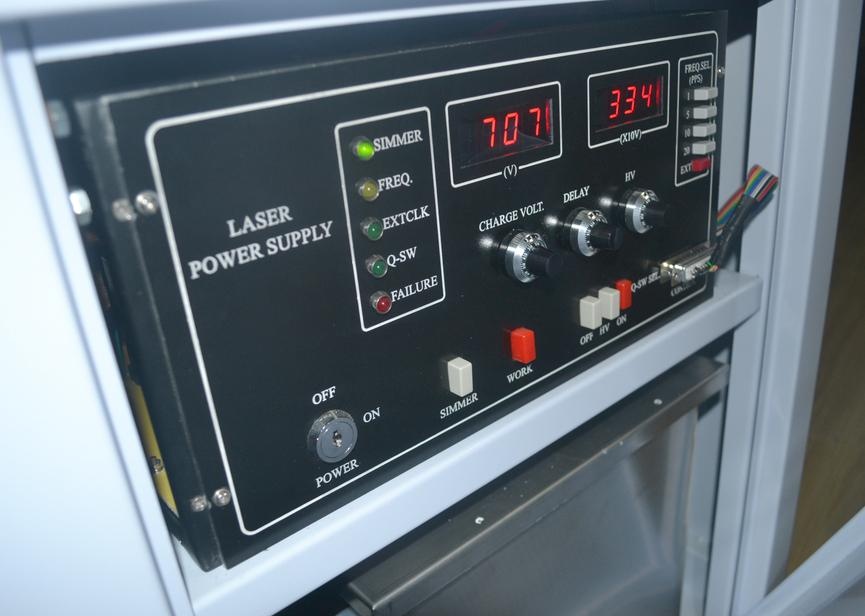

• Consumed power 800VA                                                                                                                                       ■ Detailed Pictures






  ■ Technical Data

  Laser Type	Q-switched Nd: Yag Laser

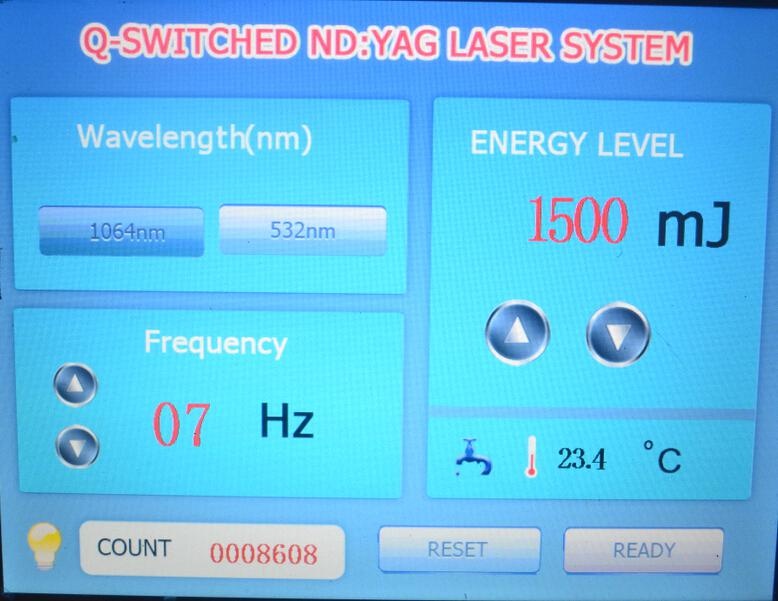

  Laser Wavelength	Double wavelength 1064nm and 532nm
  Pulse width	10±3ns
  Largest output energy of single pulse	1,500mj
  Indicator	Red Diode laser aiming beam
  Spot size	0 - 9 mm diameter adjustable

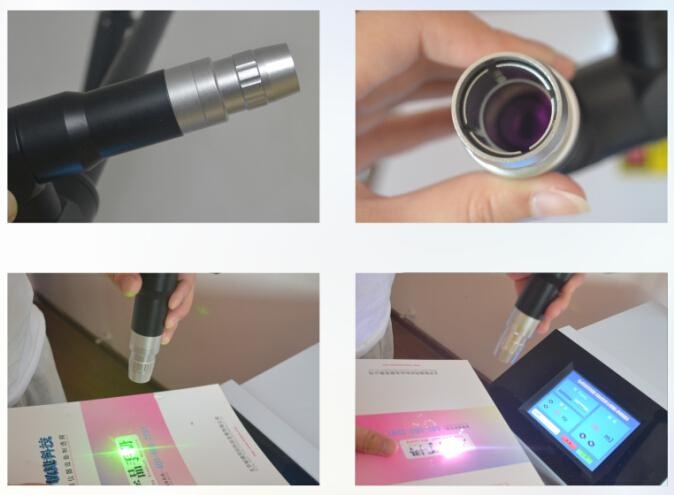

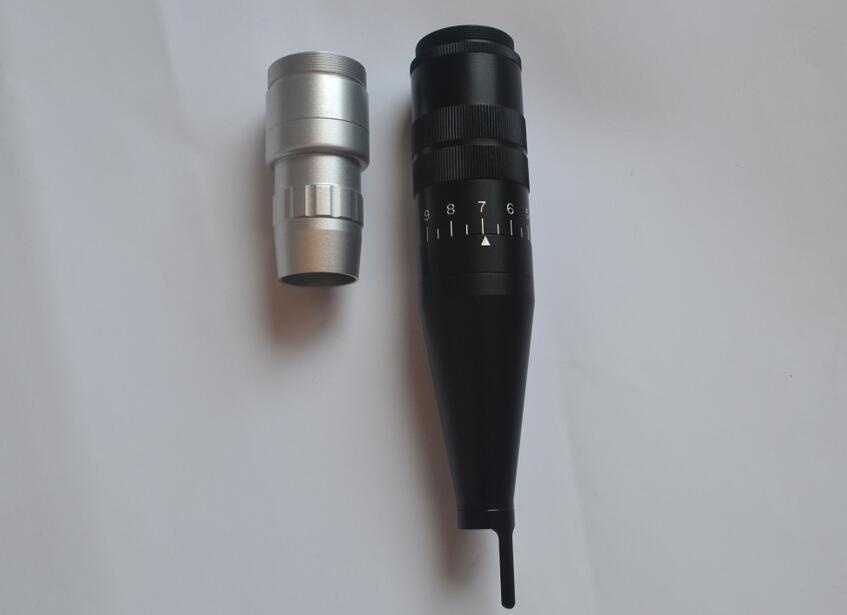

  Treatment Head	2 heads for change

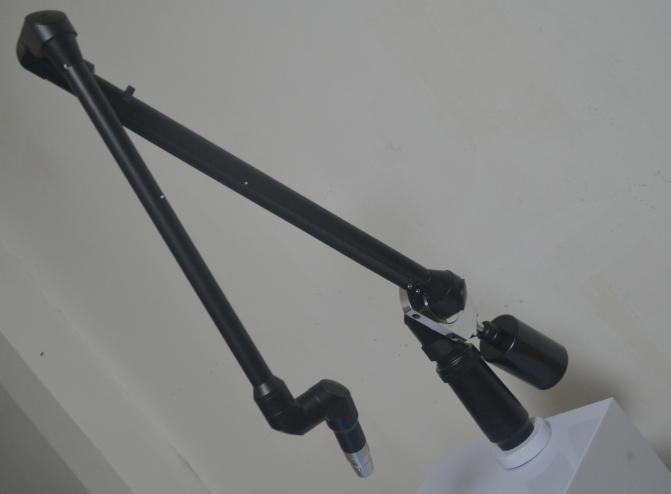

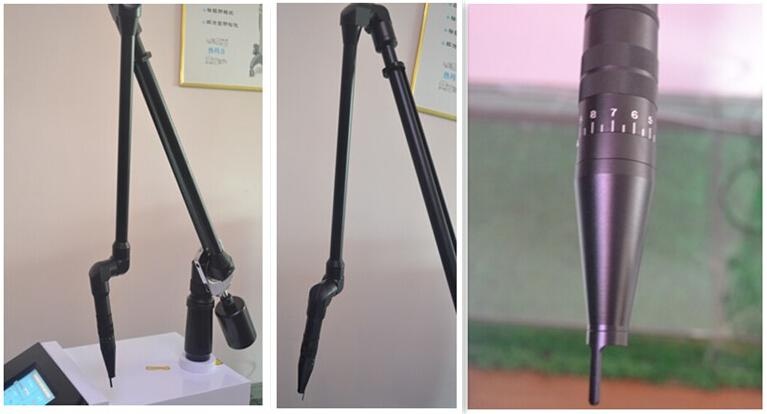

  Delivery system	7 jointed articulated arm counter balance
  Cooling System	Closed Cycle Water to Air Heat Exchanger
  Pumping Way	Single xenon lamp, single crystal stick
  Frequency	1、3、or 5、8、10Hz continuous adjustable
  Geometric Dimension	600mm*350mm*800mm
  Output Power	1500W
  Consumed power	800VA
  Voltage	AC220V/ 110V±10% 50HZ/ 60HZ
  Net Weight	68kg

  ■ Specifications
  Treatment Principle
  Adopting the Q-Switched ND: YAG model, the equipment uses laser to emit high energy instantaneously which smashing the pigment of pathological tissues, namely the laser leading explosive effect: High energy emits instantaneously, making particular wavelength laser penetrating epidermis and getting into pathological pigment tissues in only 6nms.

  Then pigments expand in top speed and explode. The superficial epidermis would be bounded out of body, other part of the pigments would split into granules which would be engulfed by macrophages, then exclude by the lymphatic system finally. The pigment becomes shallow gradually finally disappear while the surrounding normal skin tissues keep sound as they do not absorb particular wavelength laser.
  Application Ranges
  1.Removing the pigment skin pathological changes, the pigmentation caused by color pigment mixture, Pore remove,Face lift.
  2.Removing the corium spots, the melasma, freckle, mole, birthmark, nevus of Ota ,brown blue nevus,junctional nevus,etc.
  3.Specialized in removing red capillary, coffee, brown, black, cyan and other colorized tattoos.
  4.Effectively remove all kinds of embroider eyebrow, soak lip, eye line, and lip line.
